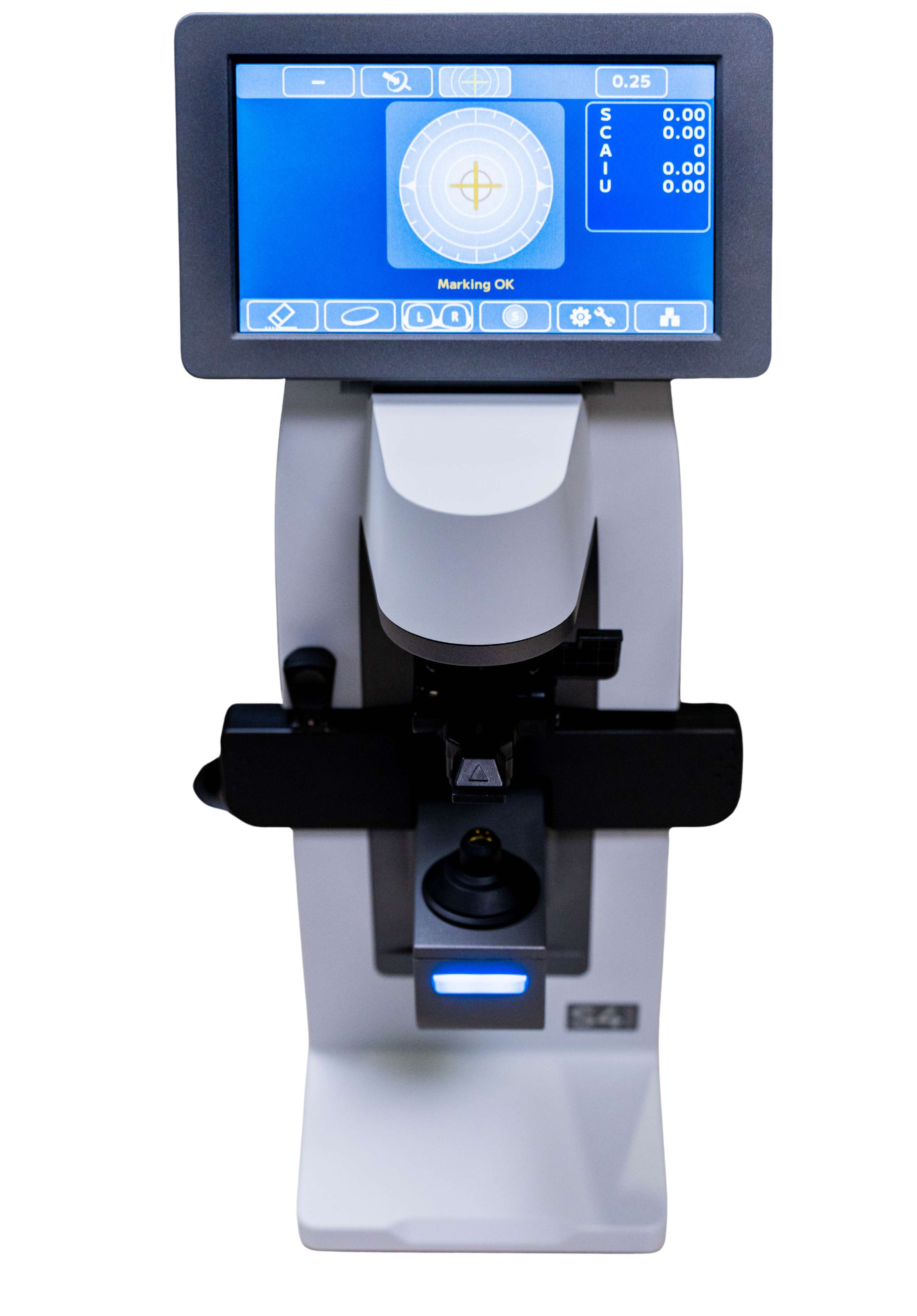

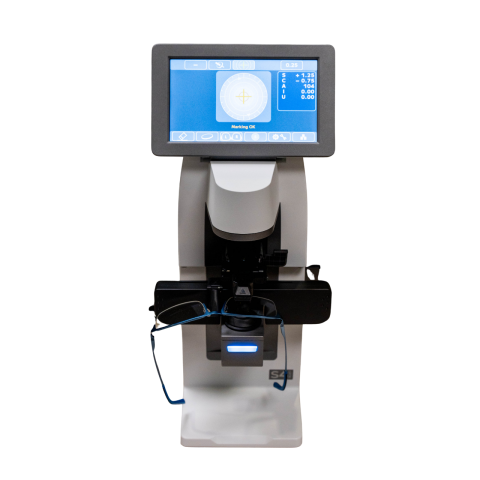

S4Optik AL 2000 Digital Lensmeter

The AL 2000 features an intuitive touchscreen interface that simplifies use and improves technician workflow. With 145 Hartmann sensor points, it delivers precise readings down to 0.50 D and ensures consistent, reliable results with progressive lenses. Additional UV, blue light, and pupillary distance measurements provide further clinical insight during every exam.

Features

• 145 Point Hartmann Wavefront Sensor With Auto Progressive Lens Mode: Measuring progressive lenses has never been easier. The AL 2000 automatically detects and measures progressive lenses with precision. A graphical guidance system and clear display symbols help users quickly align the lens for accurate results. Once aligned, the AL 2000 automatically stores both far and near power.
• UV transmittance measurement: The AL 2000 offers precise UV transition measurement at 375nm and blue light transition measurement at 420nm, ensuring accurate assessment of lens protection. Guarantee optimal eye protection against harmful UV rays and high-energy blue light, providing enhanced visual comfort and safety for users.
• PD  measurement: The AL-2000 is equipped with the PD measurement function which uses the nose pad support to identify the distance between measurement positions. PD values can also be entered manually.
• Clear and intuitive User Interface: Experience a clear and easy-to-use interface with touchscreen buttons and intuitive icons. The cross-target changes color to indicate correct alignment when the center is properly positioned. Spherical equivalent Diopter power is displayed for soft contact lens measurements. Measurement data can be displayed in Diopter steps of 0.25D, 0.12D, or 0.01D. The screen can be adjusted for optimal operator comfort.

• Connectivity: The AL 2000 is compatible with S4Optik’s DR 2200 Digital Refractor. Lensmeter data can be easily exported to the DR 2200 for an efficient and accurate workflow.

No special training required for the safe use of the device.  Please refer to the owner’s manual for cautions, precautions and other safe use instructions.
