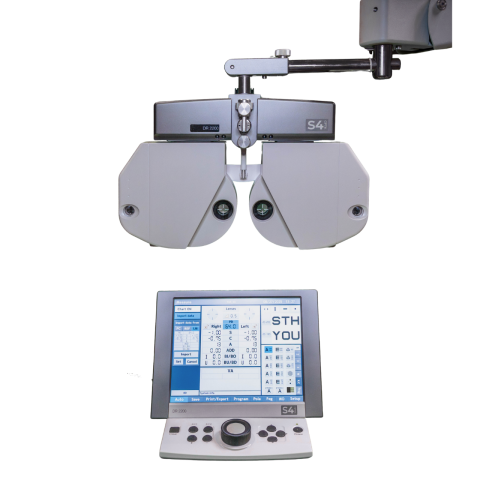

S4Optik DR 2200 Digital Refractor

The S4Optik DR 2200 Digital Refractor transforms workflow efficiency with simple connection to pretest instruments, its easy-to use guided touchscreen interface, rapid lens exchange, and data transfer to the EMR . Enjoy fewer remakes and higher throughput and repeatable results every time. Use 0.12 D sphere steps for optimal precision and differentiation. Patients benefit from a spacious 40° field of view, soft removable face shields, and dual LED illumination for stress-free near testing.

Features

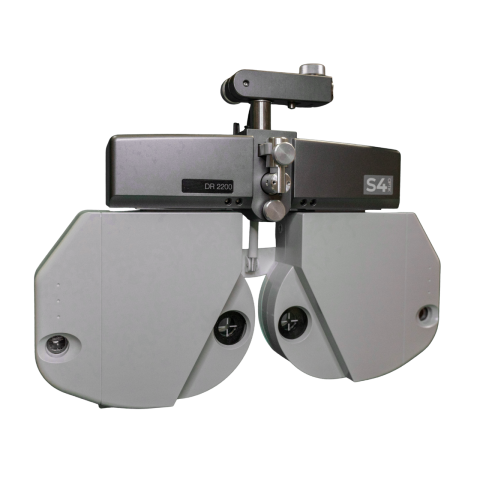

Fast, Quiet Refractor Head: The high precision optical mechanism delivers speedy, smooth and quiet motion, ensuring accurate and comfortable examinations. The compact refractor head has a 40° field of view coverage and built-in IR enables communication with an acuity system. The DR 2200 offers a minimum spherical step-size of 0.12 Diopter.

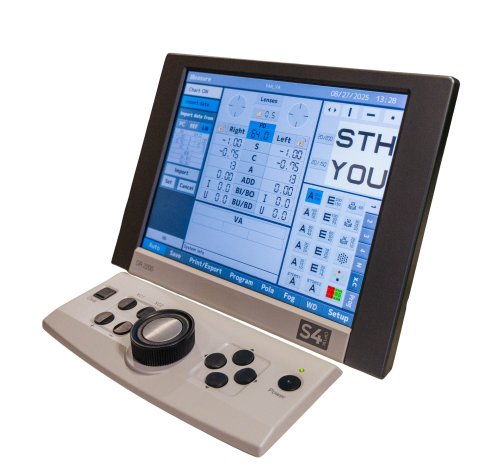

Simple, Easy Operation: A 10.4 inch full color touchscreen offers a clear overview of examination data, selection of test charts and various test methods. The controller keyboard with jog dial and buttons enables the practitioner to perform a refraction test by simply touching the LCD screen, Jog dial or buttons.
Jog Dial Auto Input Cross Cylinders: The DR 2200 has Jackson Cross Cylinder power of (±0.25D) & (±0.50D) as well as Auto-Cross Cylinder (±0.25D). The Jog dial has a 2-in-1 function that enables the practitioner to toggle the X-CYL function (XC1 or XC2) while the enter key allows the practitioner the choice to select, adjust, or enter function. Cylinder/axis is automatically changed according to the patient’s visual preference. Spherical equivalent is automatically compensated whenever 0.50D cylinder is changed during the JCC test.
Binocular Examinations: A full set of pre-defined tests are available for binocular examinations such as phoria, convergence, accommodation, etc.
Chart Masking and Randomization: The optotype chart can be randomly changed with a simple push of the touch screen. *only available in combination with VA-1 Acuity System.
Versatile Set of Auxiliary Lenses & Filters: Supplementary accessories including polarisation filters, red or green filters, Horizontal and Vertical Maddox filters are included.
Convergence For Near Vision And Adjustable LED: The DR 2200 refractor head will automatically converge to the appropriate near PD angle t for near tests The built-in double LED illumination on the refractor head is dimmable from 25%, 50%, 75% and 100% to suit various refraction room lighting conditions.
Multi-Display Interface Design Allows Simple Comparisons: The multi-display interface design clearly divides the chart information, measurement information, and import/memory areas, making operating the DR 2200 intuitive and reducing exam time. Up to 5 data sets can be stored and compared with each other. Data sets can be loaded at the press of a button to allow fast and easy comparisons.
Convenient tilting display:The touchscreen flexible tilt display (20° ~ 80°) enables the user to operate in either sitting or standing positions.
Connectivity & Workflow Tools: Automatically import data from the S4Optik autorefractor or auto lensmeter. The save function enables the practitioner to test or show patient’s current or new prescription for confirmation.

No special training required for the safe use of the device. Please refer to the owner’s manual for cautions, precautions and other safe use instructions.
